DSPP Distributor Valve
DSPP type metering device is a compact single block progressive metering device with adjustable output by means of different metering screw sizes. The screw meters the output for a pair of outlets (opposite outlets). For direct mount of fittings with no need of any sealing in-between. It is a versatile metering device available in many variants regarding type of monitoring or surface treatment.
Technical Information of DSPP Distributor Valve
| TECHNICAL CHARACTERISTICS | |
Operating pressure | 20~350 Bar |
Lubricants | Oil - NLGI 2# |
Operating temperature | -25 °C to 70 °C |
Metering quantity per cycle and outlet | min 0.08 ml/cyc; max 1.80 ml/cyc |
Inlet port | G1/8 |
Outlet port | M10x1 |
Outlets | 6 - 22 |
| Material | Carbon steel or SS |
Lubrication System | |
By crossporting or closing outlets possible to reduce outlet number below given minimum Outlet #1 and #2 should never be closed
Depending on metering screw valid for a pair of opposite outlets

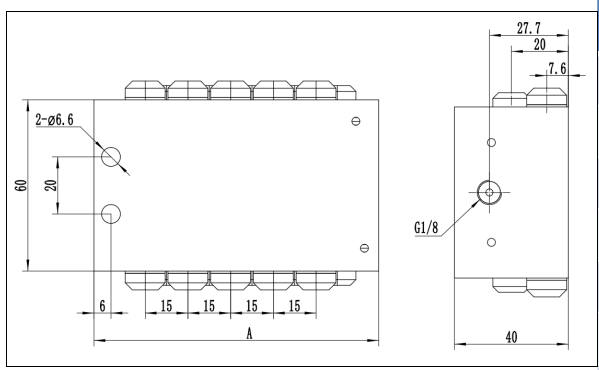

Technical Drawing of DSPP Distributor Valve
Outlets | A |
6 | 70 |
8 | 85 |
10 | 100 |
12 | 115 |
14 | 130 |
16 | 145 |
18 | 160 |
20 | 175 |
22 | 190 |
Characteristics of DSPP Distributor Valve
Ten different metering screw sizes available
Optionally visual or electrical monitoring
Ideal for use as primary metering device
Operating pressure: 20~350 Bar
Lubricants: Oil - NLGI 2#
Operating temperature: -25 °C to 70 °C
Metering quantity per cycle and outlet: min 0.08 ml/cyc; max 1.80 ml/cyc
Inlet port: G1/8
Outlet port: M10x1
Outlets: 6 - 22
Material: Carbon steel or SS
Applications of DSPP Distributor Valve
Construction and mining
Farm machinery
Industrial equipment
