Progressive Lubrication System

Progressive Lubrication System

KNOW MORE
Single-Line Lubrication System

Single-Line Lubrication System

KNOW MORE
Dual-line Lubrication Systems

Dual-line Lubrication Systems

KNOW MORE
Customized Intelligent Lubrication System

Customized Intelligent Lubrication System

  • Customized on Demand
  • System Integration
  • Efficient Protection
  • Precise Matching
KNOW MORE
Agricultural Machinery Lubrication System

Agricultural Machinery Lubrication System

KNOW MORE

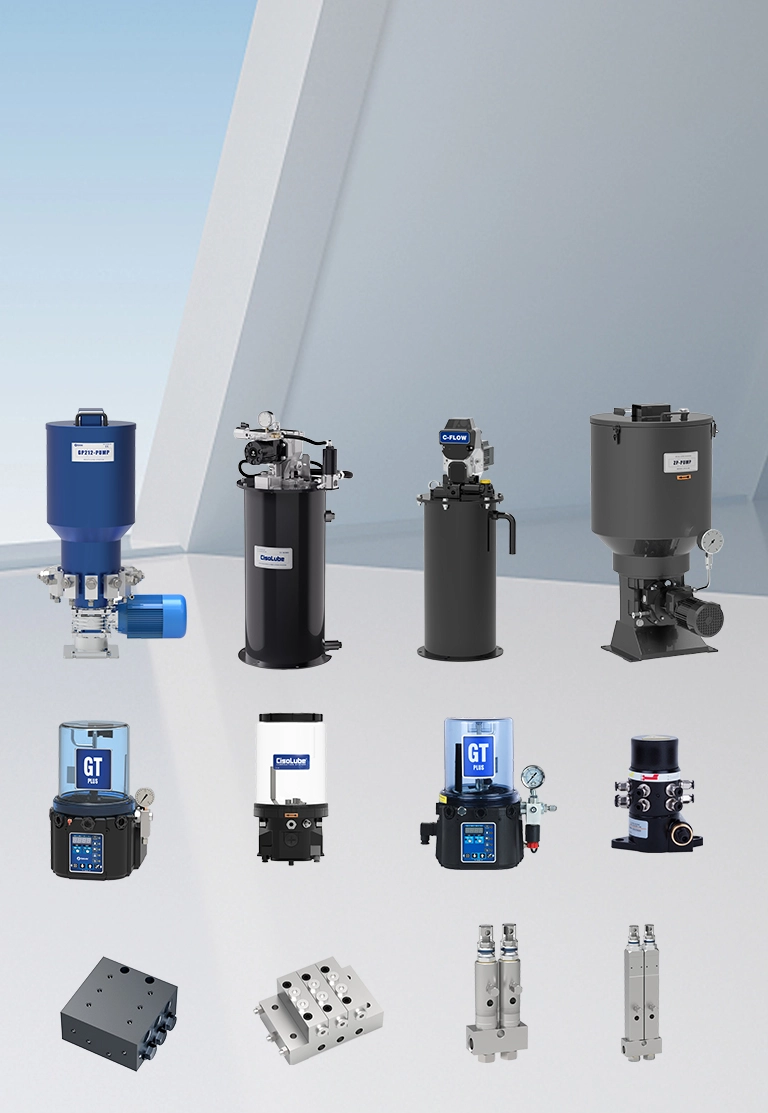

Centralised lubrication system

Centralised lubrication system

READ MORE

High Quality Central Grease Lubrication Systems From CisoLube

GT PLUS Progressive Auto Lubrication Pump
  • Unit of pump outlets: Max 5 outlets
  • Outlet thread: G1/4
  • Rated flow: 2ml, 3ml, 4ml/min
  • Operating preasure: 35MPa Max
  • Reservoir Capacity: 2, 4, 6, 8, 12L
  • Lubricants: OIL, 000, 00, 0, 1, 2
  • Operating temperatures: -50-90℃

GT PLUS Progressive Auto Lubrication Pump

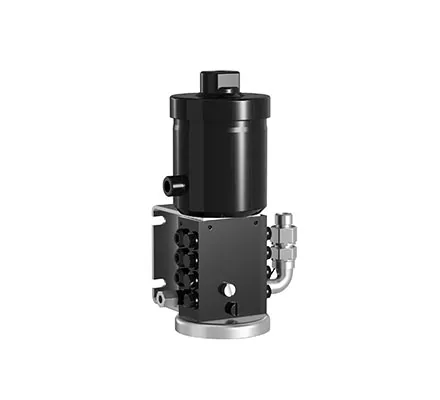

SLS spray lubrication system
  • Functional Principle: Pneumatic single-stroke piston pump
  • Lubricant: NLGI grade 2 or below grease
  • Operating Temperature: 0-60℃
  • Number of Outlets: 1-8
  • Displacement per outlet per stroke: 0.2 ml
  • Main line connection thread: M10×1
  • Air inlet thread: G1/8
  • Input working pressure: 300 bar
  • Inlet air pressure: 4-10 bar
  • Air pressure ratio: 40:1

SLS spray lubrication system

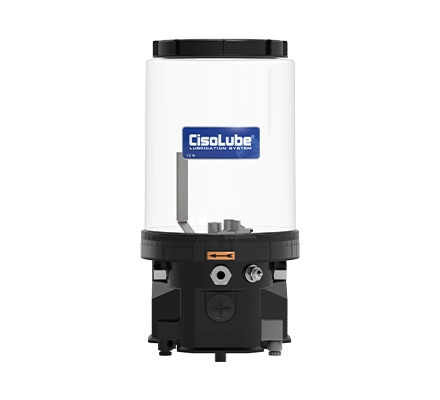

GP203 Lubrication Pump
  • Max. Operating pressure: Max. 35Mpa
  • Operating temperature: -40℃ ~ 70℃
  • Voltage: 12VDC, 24VDC, 115VAC, 230VAC
  • Unit of pump outlets: Max. 3 outlets
  • Flow per pump unit: 4.4ml/min
  • Reservoir: 2L, 4L, 8L
  • Outlet thread: G1/4
  • Lubricants: Oil, 000, 00, 0, 1, 2

GP203 Lubrication Pump

EM2 Oil Lubrication Pump
  • Outlet thread: G1/4
  • Rated flow: 20ml/min
  • Operating preasure: 7MPa
  • Reservoir Capacity: 2L, 7L
  • Lubricants: OIL
  • Voltage: 12VDC, 24VDC
  • Power Consumption: 20W
  • Operating temperatures: -40 - 70℃

EM2 Oil Lubrication Pump

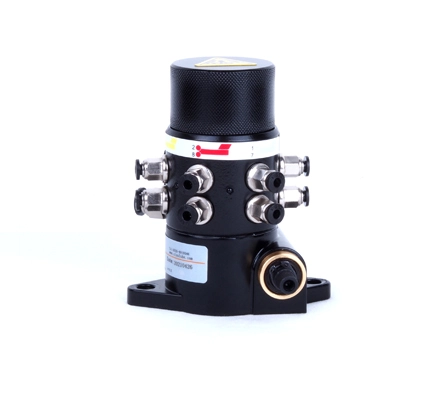

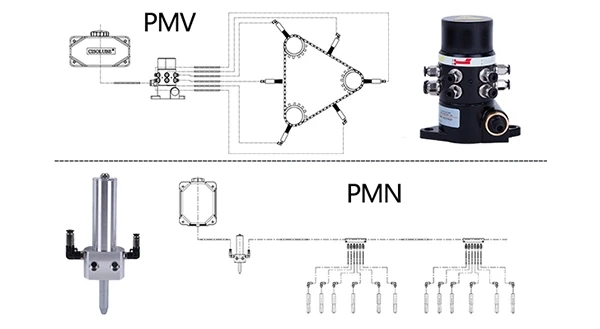

PMV Chain Lubrication Pump
  • Inlet: Ø8, Ø10
  • Reservoir: 4L, 7L
  • Suction height: ≤500mm
  • Filter Rate: 20μm
  • Output: Ø4
  • Operating pressure: Max 10Bar
  • Output rate: Max 0.06cc/cyc
  • Viscosity range: 25-1500cst

PMV Chain Lubrication Pump

AOP Wheel flange lubrication pump
  • Compressed air supply: max. 10bar
  • Service air pressure: 6~10bar
  • Standard reservoir capacity: 11 litres (other sizes upon request)
  • Lubricant volume metered by the pump: 0.05, 0.10, 0.20, 0.40ml / spraying pulse
  • Duration of spraying cycles: adjustable
  • Type of lubricants: oil or fluid grease (also biodegradable)
  • Main supply: 24V

AOP Wheel flange lubrication pump

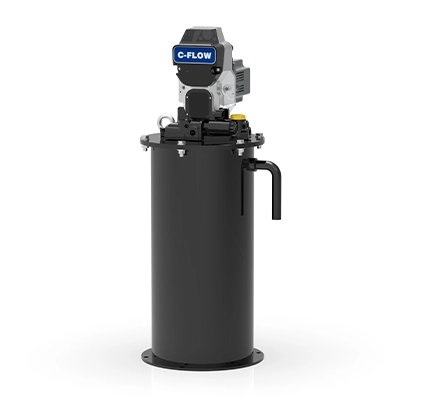

C-FLOW Single Line Lubrication Pump
  • Operating pressure: Max 241bar
  • Operating temperature: -40℃ - 65℃
  • Electrical connection: 24VDC
  • Rated Current: 11.9A
  • Rated flow: Max 74ml/min
  • Reservoir Capacity: 12L, 20L
  • Material: Steels / Stainless steels
  • Outlets: 1

C-FLOW Single Line Lubrication Pump

LUBESTAR Electric Pump
  • Operating pressure: Max. 345Bar
  • Output rate: Max. 290ml/min
  • Reservoir Capacity: 27, 41, 55KG
  • Material: Fluororubber, polyurethane, steel, aluminum-zinc castings
  • Voltages: 24VDC
  • Operating temperatures: -40℃ ~ 65℃

LUBESTAR Electric Pump

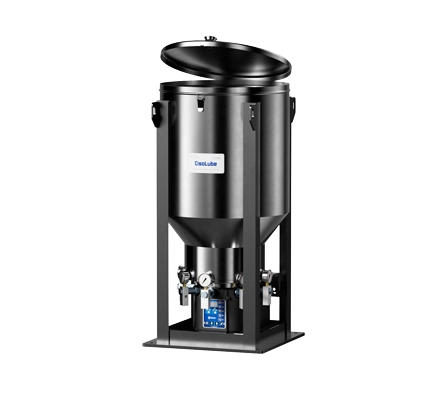

GT-HEAVY Lubrication Pump
  • Unit of pump outlets: Max 5 outlets
  • Outlet thread: G1/4
  • Rated flow: 2ml, 3ml, 4ml/min
  • Operating preasure: 35MPa Max
  • Reservoir Capacity: 2, 4, 6, 8, 12L
  • Lubricants: OIL, 000, 00, 0, 1, 2
  • Operating temperatures: -50-90℃

GT-HEAVY Lubrication Pump

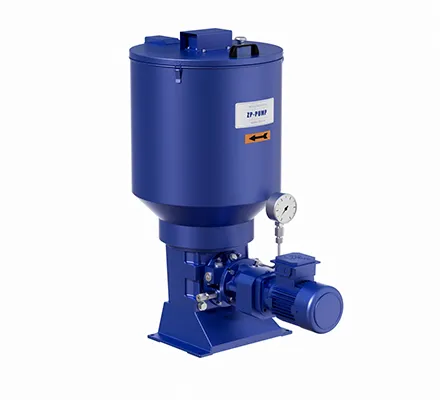

ZP08/14/24 Lubrication Pump
  • Operating temperature: -20 to +70°C
  • Operating pressure: Max 40Mpa, 5800 psi
  • Reservoir capacity: 40L, 60L, 100L
  • Electrical connection: 380V

ZP08/14/24 Lubrication Pump

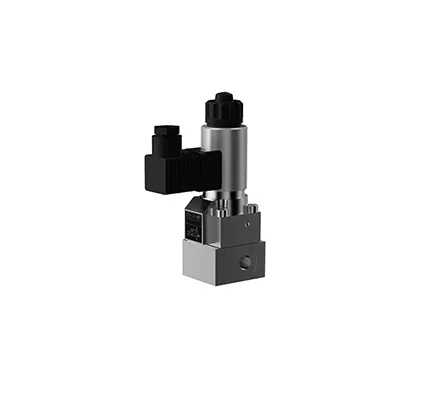

CSV Solenoid Valve
  • Maximum working pressure: 400 bar
  • Maximum lubricant flow: 15 000 cm³/min
  • Description: valve 2/2, NC (normally closed) or NO (normally opened), valve 3/2, valve 4/2 NC or NO
  • Nominal operating voltage: 24V DC, 110V AC, 230V AC, 50/60Hz
  • Inlet and outlet pipe union: G1/4", G1/2", G3/8" or G3/4"
  • Lubricant: oil, grease max. NLGI-2

CSV Solenoid Valve

DSP Distributor Valve
  • Operating temperature: -40-200 °C
  • Discharge (for outlet): 0.2ml/cyc
  • Inlet port: G1/8
  • Outlet port: M10x1
  • Outlets: From 6 to 22
  • Piston cycles: Max 200 cyc/min
  • Material: Carbon steel or stainless steel

DSP Distributor Valve

DXF Progressive Distributor Valve
  • Outlets number: Max. 24
  • Discharge / Stroke for each outlet: 0.025ml - 0.045ml - 0.075ml - 0.105ml
  • Max. pressure: 30MPa Max.
  • Operating temperature: -20℃ ~ +100℃
  • Piston cycles: Max. 300 cyc/min
  • Lubricants: Oil ~ NLGI 2#
  • Inlet thread: G1/8
  • Outlet thread: M10*1
  • Material: Carbon steel or stainless steel

DXF Progressive Distributor Valve

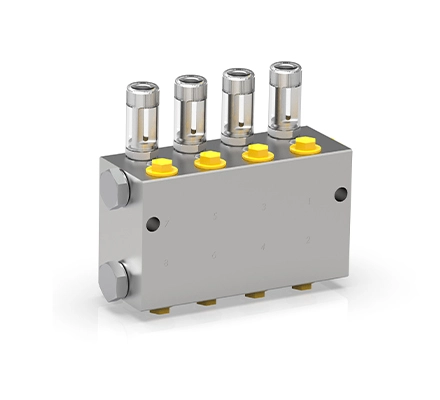

DSG Dual-line Grease Metering Devices
  • Outlets: 2-8
  • Operating temperature: Max. 120℃
  • Operating pressure: Max. 400bar, 5800psi
  • Lubricant: NLGI 0#-3#
  • Inlet thread: G3/8
  • Outlet thread: G1/4
  • Materials: steel galvanized

DSG Dual-line Grease Metering Devices

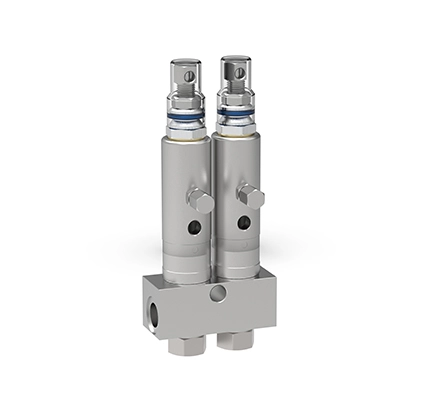

VL-1 Metering Valves
  • Outlets: 1 to 6
  • Lubricant: grease NLGI 0, 1, 2
  • Operating pressure: 128 to 241 bar
  • Material: Carbon steel or stainless steel
  • Connection main line: 3/8 NPT (F)
  • Connection outlet: 1/8 NPT (F)

VL-1 Metering Valves

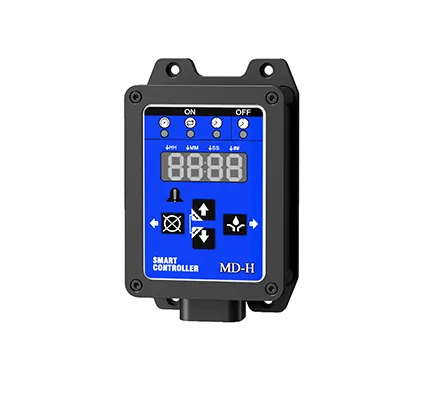

MD-H Controller
  • Power Supply: 9 – 30 VDC
  • Controller Power Consumption: 1 W
  • Cycle / Pressure Switch Input: 9 – 30 VDC, Normally Open, PNP switch
  • Level Signal Input: 9 – 30 VDC, Normally Open, PNP switch
  • Lubrication Pump Voltage: Equal to power supply voltage

MD-H Controller

Explore CisoLube Centralized Lubrication System

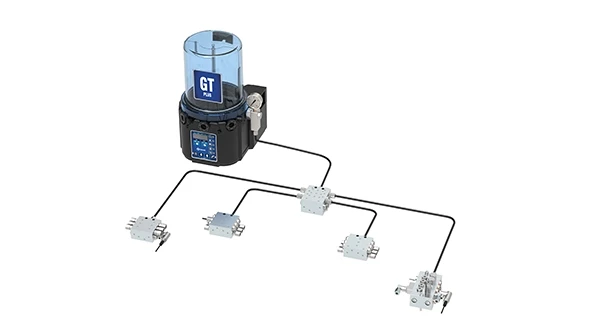

Progressive Lubrication Systems

Progressive Lubrication Systems

Compact, flexible kit; Monitored function; Channels flow through completely; Wide range of use; Integrated return valve inside.

Read More

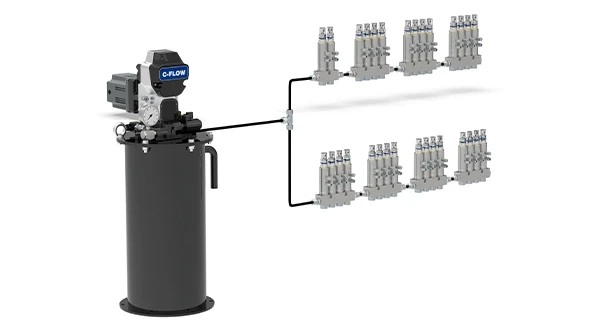

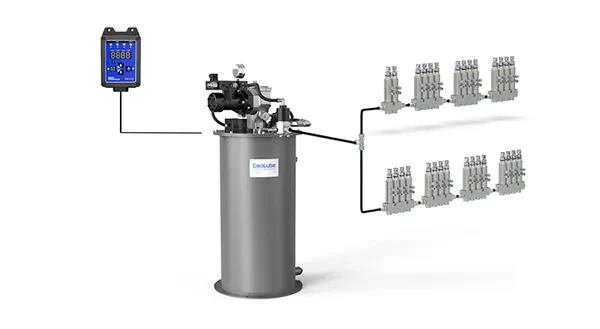

Single-Line Lubrication Systems

Single-Line Lubrication Systems

Supply to numerous lubrication points, Flexible construction, Exact dosing, and Easy expansion.

Read More

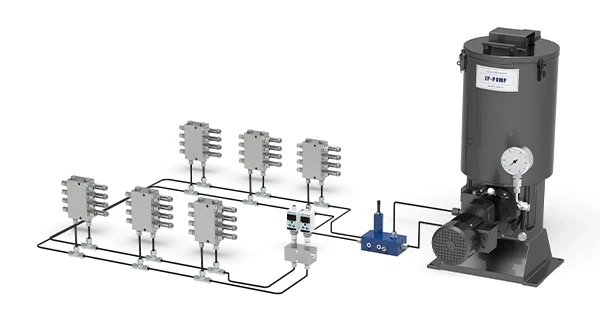

Dual-line Lubrication Systems

Dual-line Lubrication Systems

CISO dual-line systems can be used on large systems with dispersed lubrication points that require varying lubrication quantities.

Read More

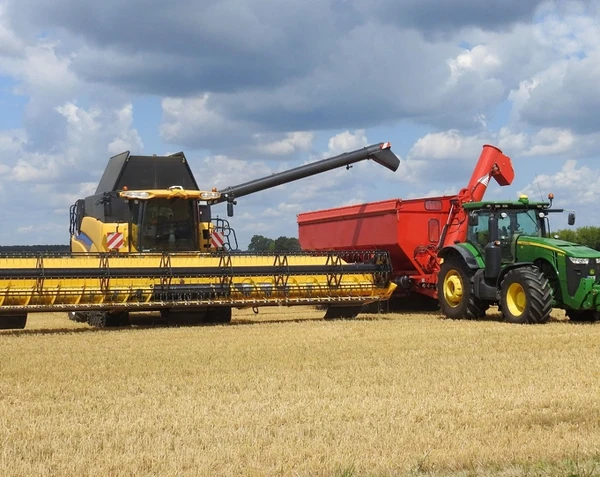

Agricultural Machinery Lubrication System

Agricultural Machinery Lubrication System

CISOLUBE provides complete automatic lubrication system solutions for agricultural machinery, ensuring every lubrication point receives accurate supply of lubricants. The system effectively reduces maintenance time, prevents unexpected failures, and significantly improves operational efficiency.

Read More

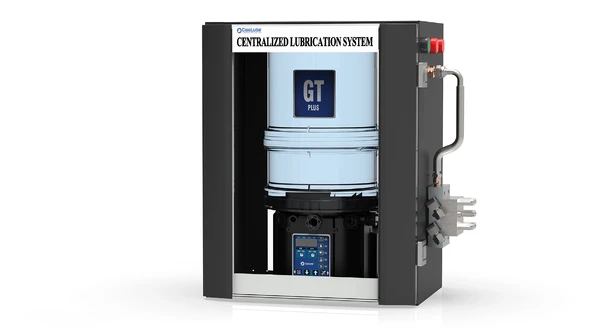

Customized Intelligent Lubrication System

Customized Intelligent Lubrication System

CISOLUBE offers Customized Intelligent Lubrication Systems, thoroughly analyzing equipment requirements to provide professional and flexible solutions. With factory-direct production, strict quality control, on-time delivery, and efficient service, we meet customer needs.

Read More

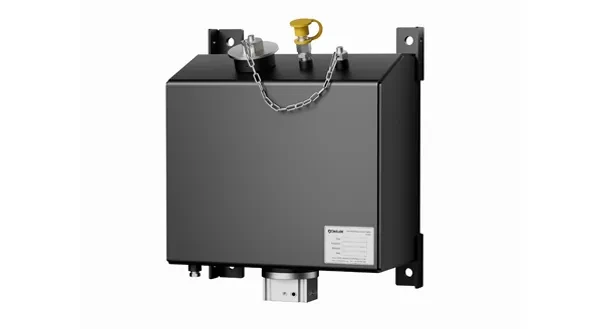

Rail Lubrication System

Rail Lubrication System

The AOP Wheel Flange Lubrication Pump features a compact design for easy installation, reduces operating costs, extends equipment service life, and minimizes wheel reprofiling needs. It is environmentally sustainable, operates with lower noise emissions, and reduces material wear.

Read More

Centralized Lubrication System Solutions From CisoLube

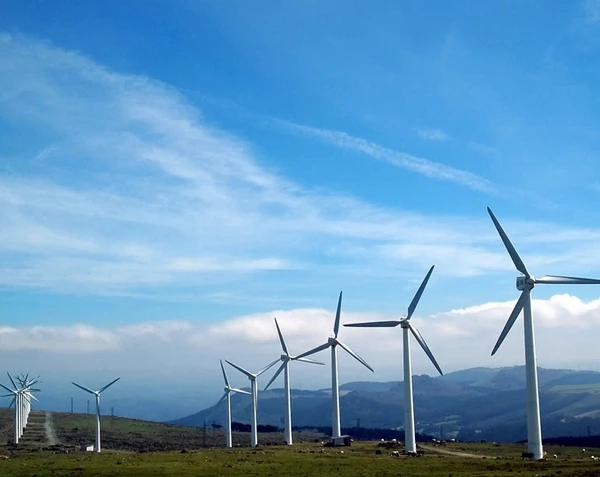

The centralized lubrication systems produced by lubrication system manufacturer Cisolube have the characteristics of high stability, strong reliability, good sealing, and high output pressure. The automatic lubrication unit and centralized grease lubrication systems currently have covered petrochemical, wind power generation, construction machinery, agricultural machinery, rail transit, and other industries, and automatic grease lubrication system is a leading solution provider in the industry.

Why Choose CisoLube Central Lubrication Systems

The Leading Central Grease Lubrication System Manufacturer in China

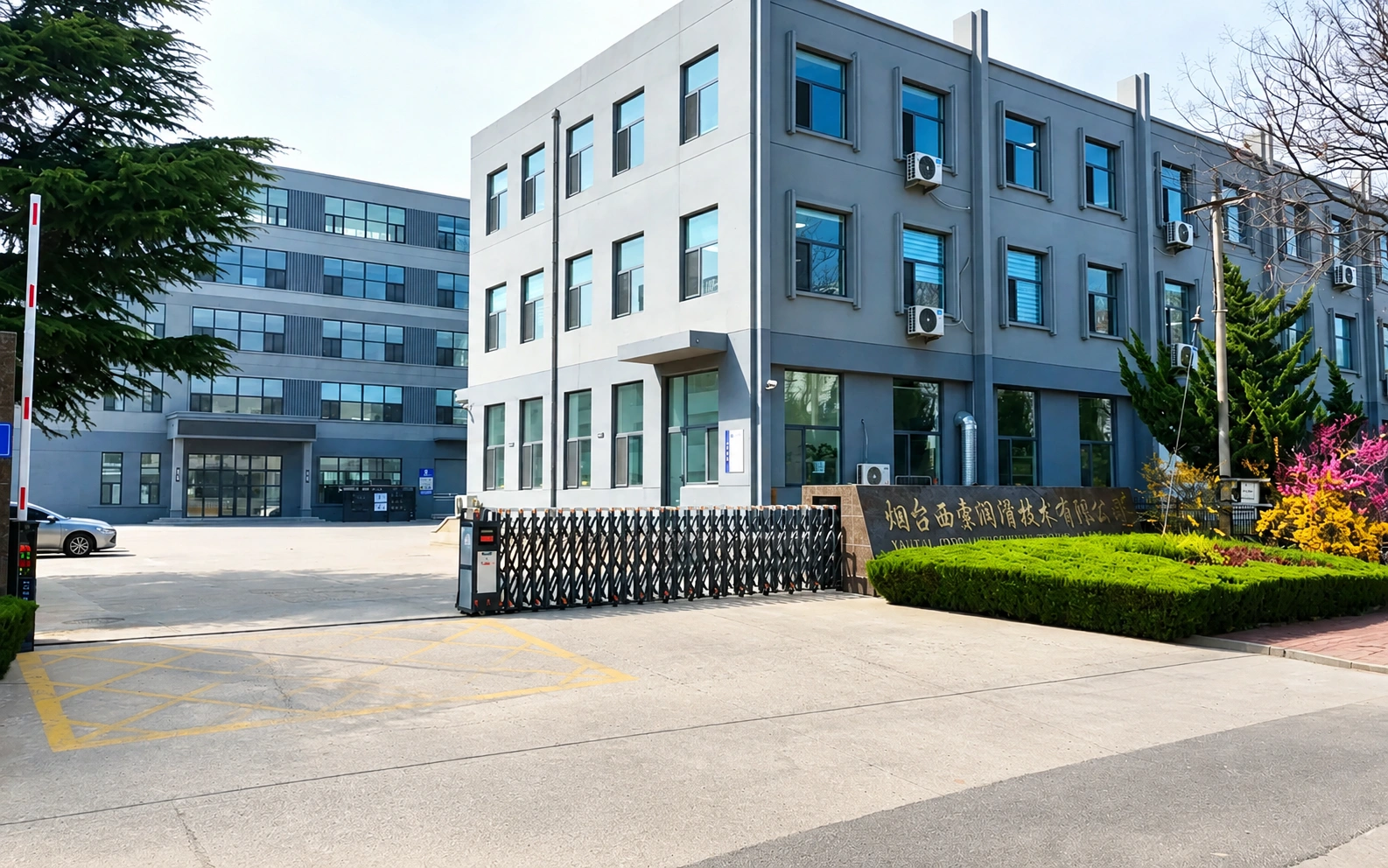

Yantai CISO Lubrication Technology Co., Ltd. is a privately-owned centralized grease lubrication system manufacturer that specializes in research and development, production, and sales central grease system and units. Our main focus is on developing centralized lubrication systems technology with our own intellectual property rights and core competitiveness. We strive to provide high-quality central lubrication systems to customers all over the world.

Yantai CISO Lubrication Technology Co., Ltd.
Integrity-based, quality first, and continuous innovation.
17+
Years' Experience
500+
Partners
7-day
Fast Shipping
24h
Customer Service
