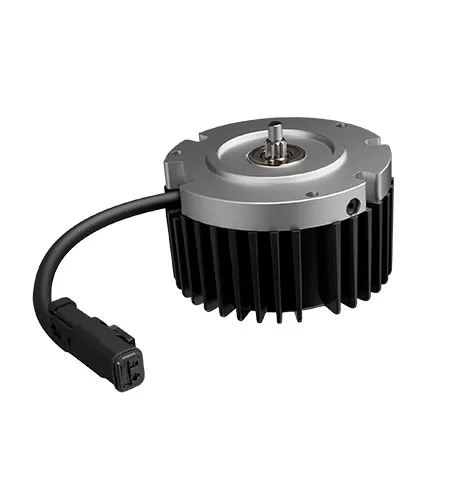

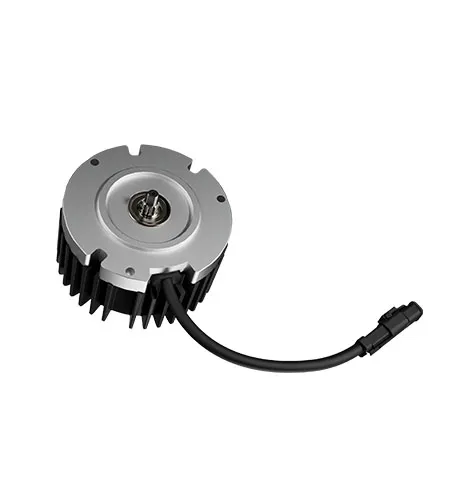

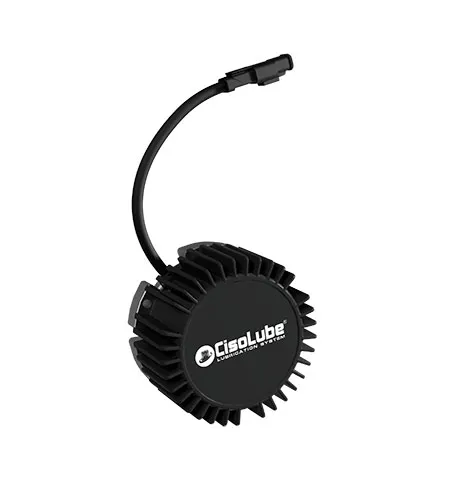

LUBESTAR Brushless DC Drive Motor
The LUBESTARBrushless Drive Motor is specially developed for single-line lubrication systems and is designed with a 24V DC power supply. It features high efficiency, high torque output, and low-noise operation. The motor adopts advanced brushless drive technology, offering more stable performance, reduced mechanical wear, and a significantly longer service life compared with traditional brushed motors, making it suitable for long-term continuous operation.

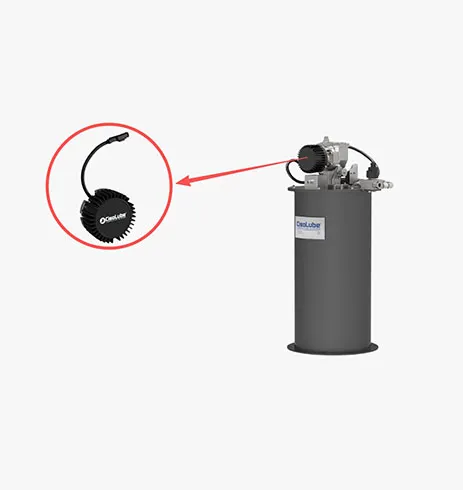

With strong torque output capability, the Lubestar Brushless Drive Motor maintains stable power delivery even under high-pressure conditions, providing reliable and continuous driving performance for lubrication pumps. In addition, the motor features a compact structure, low energy consumption, and fast response, effectively improving the efficiency of the lubrication system while reducing overall maintenance costs.
colspan="2">
Technical data
Model | Part Number 2002861 |
Controller Power Consumption | DC 24V |
Rated Power | 186 W |
| Rated Current | 9.6 A |
| Rated Speed | 1500 RPM |
| Duty Cycle | S1 |
| Application Range | Suitable for Lubestar / Cisolube electric lubrication pumps |
| Protection Degree | IP65 |

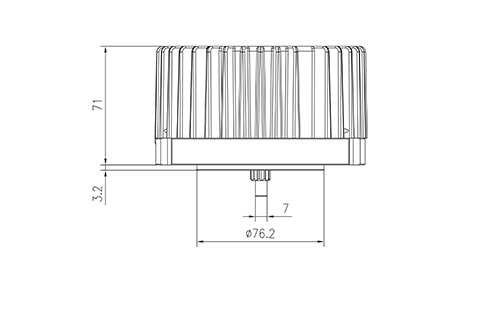

Motor Dimension Drawing(mm):

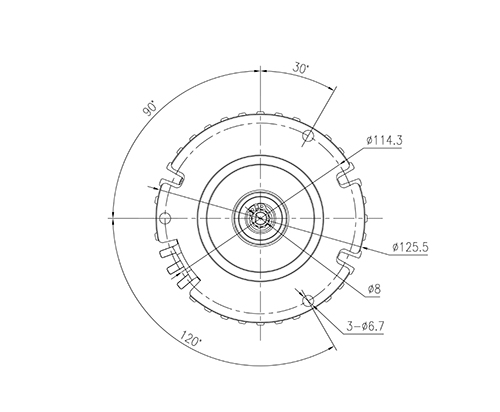

Motor Mounting Dimension Drawing (mm) :
