EM2 Oil Lubrication Pump
The EM2 oil lubrication pump is a compact unit specially designed for applications with limited installation space. Its small size makes it an ideal solution for providing centralized lubrication protection in compact machinery.
The pump features a white translucent reservoir, allowing easy visual monitoring of oil levels at any time. A large-diameter filling port with a built-in filter ensures effective impurity interception, guaranteeing long-term safe and reliable equipment operation.
The EM2 oil lubrication pump is available in two configuration modes:
Standard Model – controlled by an external PLC. It does not include an internal control unit, making it a more economical option for lubrication systems.
Technical Information of EM2 Oil Lubrication Pump
| TECHNICAL DATA | |
Outlet thread | G1/4 |
Rated flow | 20ml/min |
Operating preasure | 7MPa |
Reservoir Capacity | 2L、7L |
Lubricants | OIL |
Voltage | 12VDC、24VDC |
Power Consumption | 20W |
Operating temperatures | -40 - 70℃ |

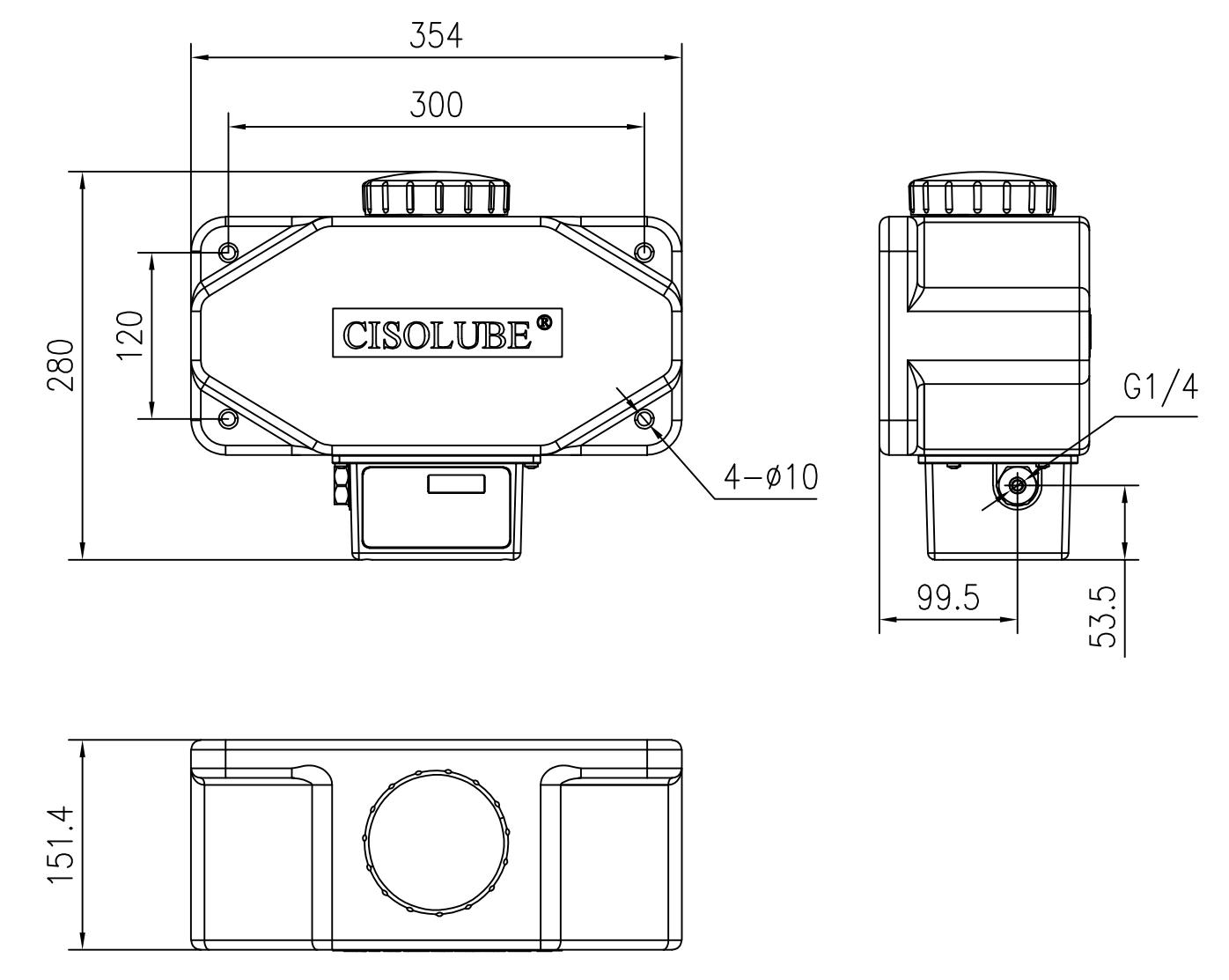

Dimensions(mm) of EM2 Oil Lubrication Pump
Features and advantages of EM2 Oil Lubrication Pump
Easy and quick operation
Top-cover design for convenient oil refilling
Built-in filter to effectively prevent impurities and ensure safe, reliable equipment operation
Application Industries of EM2 Oil Lubrication Pump
Urban Rail Transit
Regional Trains
Intercity Trains and Locomotives
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
